StarTech.com
StarTech USB C Multiport Adapter - USB Type-C 10Gbps Mini Dock 4K 60Hz HDMI/DisplayPort/1080p VGA - 75W PD Passthrough, USB Hub & GbE
10Gbps USB-C mini dock - Single 4K 60Hz monitor w/ DisplayPort 1.4 host (DP/HDMI 2.0 HDR) or 4K 30Hz w/ DP 1.2 host, or 1080p VGA - 2x USB-A/1x USB-C/GbE - USB-C mobile adapter w/10in attached cable - USB bus powered or 75W Power Delivery Passthrough
Buy 2 Reams Get a Macy's or Home Depot Gift Card - Learn More
Item:
STCDKT31CHDVCM

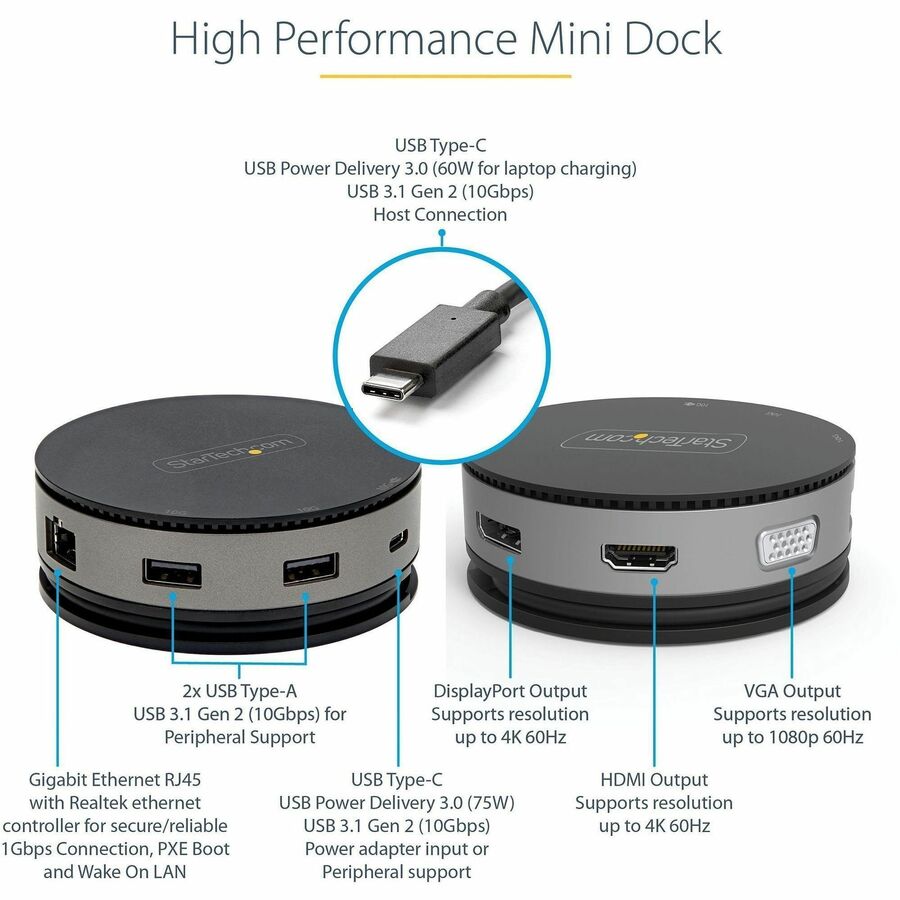

- HIGH PERFORMANCE MINI DOCK: Compact USB-C mobile adapter (USB 3.1 Gen 2 10Gbps); connect a single display with three video output options: DisplayPort or HDMI up to 4K 60Hz with HDR (requires DP 1.4 Alt Mode Source) or up to 1080p with VGA
- 4K 60HZ WITH DP 1.4 ALT-MODE: 4K 60Hz on hosts that support DP 1.4 Alt-Mode and HBR3 w/ DSC enabled laptops (min. Intel 11th Gen) or up to 4K 30Hz resolution on host devices that support DP 1.2 Alt-Mode
- BUILT-IN USB HUB: This USB C multiport adapter features an integrated USB 3.2/3.1 Gen 2 hub with 2x USB-A and 1x USB-C downstream ports supporting speeds up to 10 Gbps; includes a gigabit Ethernet port
- EXTRA LONG CABLE: 10" (24cm) attached cable for extended reach to reduce port strain on 2-in-1's like iPad Pro & Surface Pro 7; USB C multiport adapter with wraparound cable for office, travel & home
- RELIABLE PERFORMANCE: USB bus powered or via external USB-C power adapter; 75W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; up to 60W for laptop charging
- WIDE COMPATIBILITY: A portable dock for USB-C ultrabooks, Chromebooks, tablets & Thunderbolt 3 laptops like HP, Dell, Lenovo, MacBooks (Intel processor & M1 chip), iPad Pro; works w/ Windows, macOS, iPadOS, Chrome OS, Android
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Ships in 6-10 Bus Days
Checking for Also-Bought items, please wait...
Manufacturer:
StarTech.com
Catalog:
General Line (consumer) Catalog
Catalog page:
SPC
Manufacturer
StarTech.com
Manufacturer Part Number
DKT31CHDVCM
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
USB C Multiport Adapter
Marketing Information
This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C ® or Thunderbolt™ 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections HDMI, DisplayPort, VGA video options 10Gbps USB-C & USB-A peripheral ports Attached 24cm (10 in) USB-C® host cable Three Video Output Options This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor. HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR) DisplayPort (Up to 4K 60Hz with DP 1.4) VGA (Up to 1080p) Designed for Portability & Ease of Use The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging). Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable. Essential Port Configuration In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Docking Station
Manufacturer
StarTech.com
Manufacturer Part Number
DKT31CHDVCM
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
USB C Multiport Adapter
Marketing Information
This USB-C Gen 2 10Gbps multiport adapter, with backward USB-C laptop compatibility, turns your USB-C ® or Thunderbolt™ 3 Windows laptop, MacBook Pro, iPad Pro, Surface, Chromebook, or Android tablet into a workstation, anywhere you go. The USB 3.2 Gen 2 Type-C hub adapter features a unique portable, circular design and all of the essential connections HDMI, DisplayPort, VGA video options 10Gbps USB-C & USB-A peripheral ports Attached 24cm (10 in) USB-C® host cable Three Video Output Options This USB-C multiport adapter features HDMI, DisplayPort, and VGA ports providing you with three single video output options for your workstation setup or boardroom presentations including support for an ultra-wide monitor. HDMI (Up to 4K 60Hz with DP 1.4 and HDMI 2.0 HDR) DisplayPort (Up to 4K 60Hz with DP 1.4) VGA (Up to 1080p) Designed for Portability & Ease of Use The USB-C travel dock features a compact circular design and an attached extended length 24cm (10 in.) host cable, accommodating a wide variety of setups. Bus-powered for most applications, there's no need to carry around a separate bulky power adapter. If extra power required, you can use your external USB-C laptop power adapter with support for up to 75W Power Delivery pass-through (15W for docking station & rest for charging). Installation is fast and simple, with native support in most operating systems, and at only 7 ounces (198 g) and taking up less space than your smartphone, this dock easily fits in your laptop bag or briefcase with a convenient wraparound cable. Essential Port Configuration In addition to the video outputs, the portable USB-C dock gives you two 10Gbps USB-A ports and one 10Gbps USB-C port to connect the latest and legacy USB devices. The adapter also integrates a Gigabit Ethernet port to access a wired network. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Docking Station
Connectivity Technology
Wired
Device Supported
- Tablet PC
- Notebook
Host Interface
USB Type C
Total Number of USB Ports
3
USB Type-C
Yes
USB Type-C Detail
USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps), USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Network (RJ-45)
Yes
VGA
Yes
DisplayPort
Yes
HDMI
Yes
Thunderbolt
Yes
Operating System Supported
- Windows 11
- Windows 10
- Windows 8.1
- Mac OS X 10.12 Sierra
- Mac OS X 10.13 High Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- ChromeOS
- Android
- iPadOS
Maximum Power Supply Wattage
75 W
Height
1.30"
Width
3.50"
Depth
3.50"
Weight (Approximate)
9.80 oz
Package Contents
- USB C Multiport Adapter
- Quick-Start Guide
Compatibility
- Microsoft Surface Pro 7
- Google Chromebook
Apple Products:
- MacBook
- iPad Pro
Brand Compatibility
- Apple
- HP
- Dell
- Lenovo
- Microsoft
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin
China
End of Life Manual Availability
Yes
EU RoHS Declaration URL
https://media.startech.com/cms/pdfs/dkt31chdvcm_rohs.pdf
REACH Declaration URL
https://media.startech.com/cms/pdfs/dkt31chdvcm_rohs.pdf
REACH free of SVHC
Yes
WEEE Statement
https://media.startech.com/cms/pdfs/dkt31chdvcm_weee.pdf
3 Year
